Tour-grade output, install-grade footprint.
AES70.dynamics

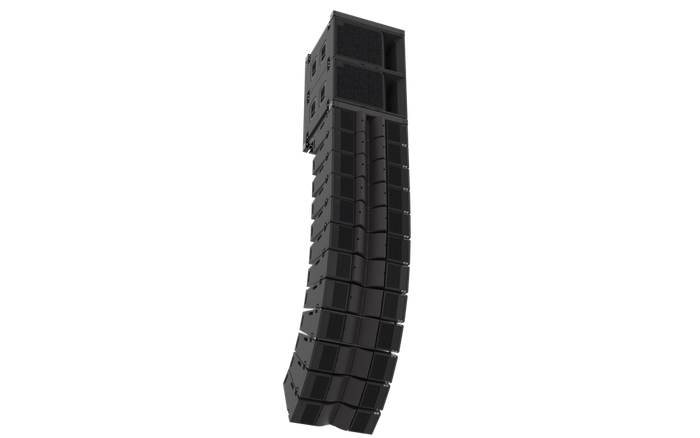

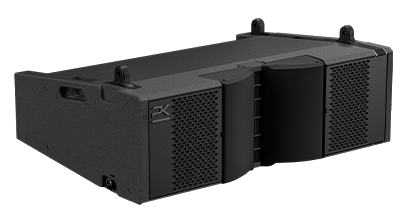

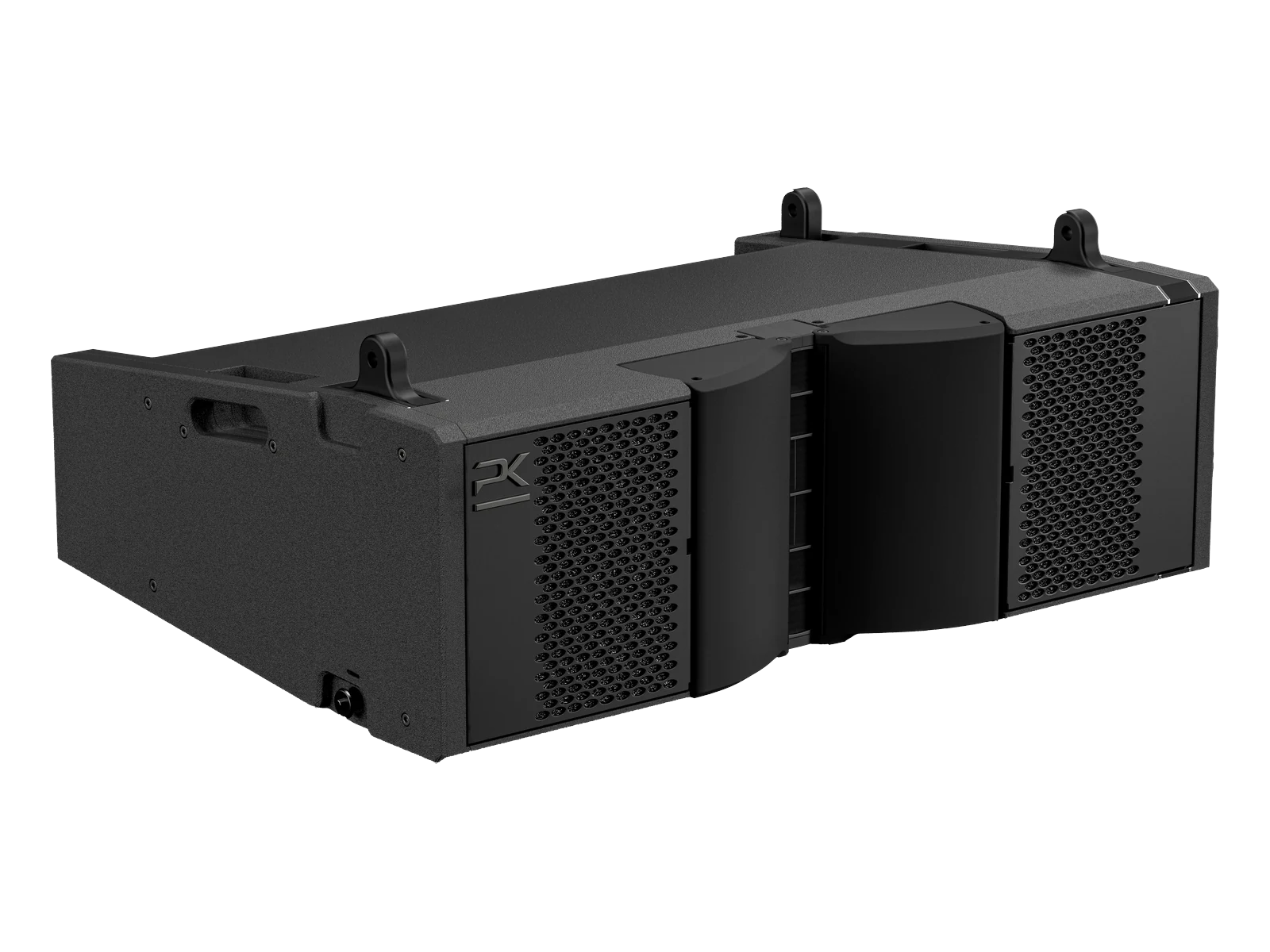

T8 is the compact member of the industry's first robotically controlled line source family. Featuring PK Sound's patented multi-axis robotics, T8's output is precisely controlled in both the vertical and horizontal planes, offering system operators maximum flexibility in making coverage adjustments after the array is flown.
A pair of vented 8″ Tetracoil transducers with custom phase plugs manage low-frequency response while a dual ring radiator coaxial compression driver handles mid and high frequencies.
| Peak SPL | 143 dB |
| Frequency Response | 50 Hz-20 kHz |
| Actuation System | |
| Horizontal Directivity | 60°-120° Robotic Directivity |
| Horizontal Resolution | 5° Symmetric & Asymmetric |
| Vertical Adjustment | 0°-12° Robotic Directivity |
| Vertical Resolution | 0.1° Increments |
| Horizontal Thrust | 750 N |
| Vertical Thrust | 2,500 N |
| Duty Cycle | 80,000 Actuations (109 years) |
| Low Frequency | 2 × 8″ Neodymium Tetracoil |
| Mid Frequency | 1 × 3″ Coaxial Dual Ring Radiator |
| High Frequency | 1 × 2″ Coaxial Dual Ring Radiator |
| Amplifier | VE15 2-Channel Class D |
| Amplifier Power | 1,400 W |
| Operating Voltage | Auto-Switching 100-240 V, 50/60 Hz |
| Power Consumption | 220 W |
| Network | AES70 / Proprietary |
| Input Selection | Analog/AES – IP65 |
| Audio/Network | Balanced XLR/etherCON – IP65 |
| Power | powerCON TRUE1 – IP65 |
| Weight | 31.4 kg / 69.2 lb |
| W × H × D (mm) | 755 × 240 × 494 |
| W × H × D (in) | 29.7 × 9.4 × 19.4 |
| Max Line Length | 24 Modules |
| Environmental | IP43/IP42 |
| Module Construction | Void-Free, High-Grade Baltic Birch |
| Rigging Construction | 6061-T6 Aluminum |
| External Coating | EXL Polyurea |
| Grill | Powder Coated Aluminum |
| Warranty | 7 years · all components |
